Color Changing RGB LED Controllers
Specification

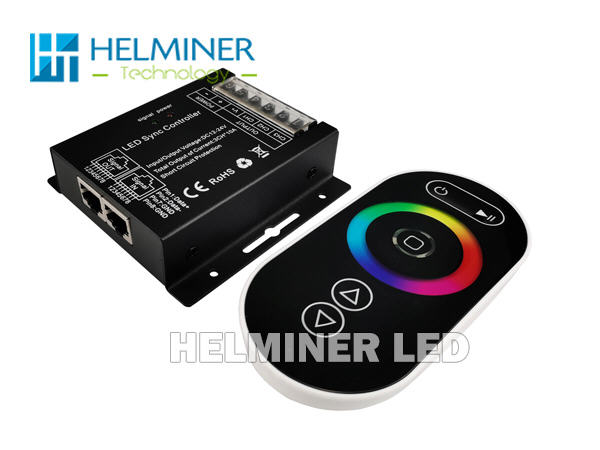

- RGB 10A*3CH 720W LED Controller
- It is constant voltage, suit for all kinds of the constant voltage LED RGB Light, RGB Strip, RGB LED Module, RGB Ceiling
- There is a RF remote touch control 5 functions, 1 color ring and 1 color sense lamp in the center, all buttons are in the touch form, the color ring have 128 levels in different colors.

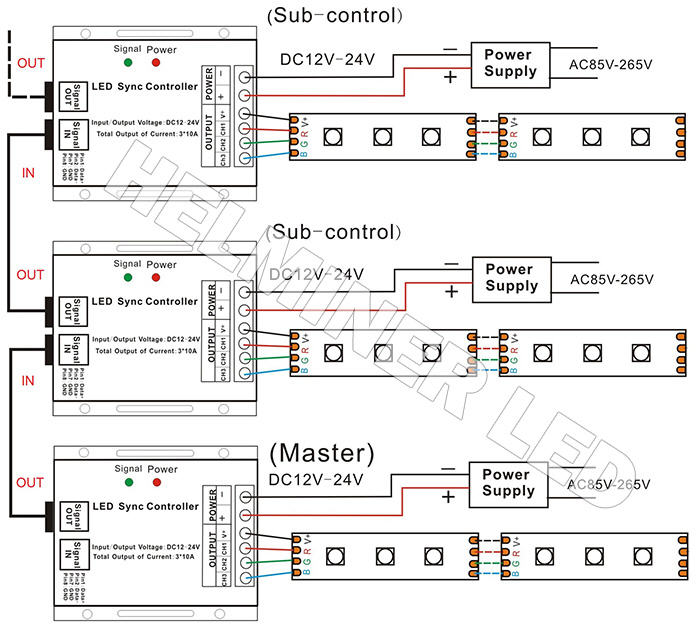

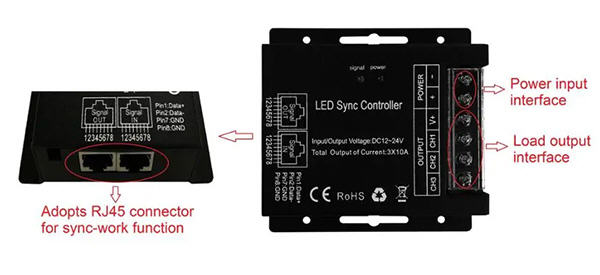

- Using RJ45 connector to connect the multiple controllers together, and achieve the synchronization function of thousands meters led strips
- There are 9 modes in total, including 2 white static colors and 7 dynamic modes. The brightness of all static color and the speed of the dynamic modes are adjustable.
RGB led touch controller 24A
RGB Colour Controllers, LED Light Remote Controls

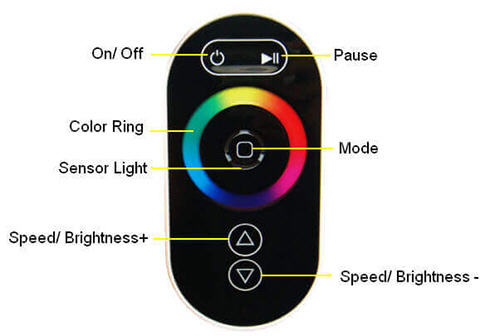

| Name of key | Instruction | Remarks |
|---|---|---|
| ON/OFF | ON or OFF in any time | |
| Pause | Pause or Continue | |
| Mode | The mode will go to next, when you touch the key each time | 9 modes in total. |
| Speed/Brightness + | The Speed/Brightness will add, when you touch the key each time | Speed for dynamic modes, Brightness for static modes. |
| Speed/Brightness - | The Speed/Brightness will subtract, when you touch the key each time | Speed for dynamic modes, Brightness for static modes. |
| Color Ring | Touch any color which you want |
RGB LED Controllers And Sensors - LED Lighting Suppliers
| Input Voltage | DC5V,12V~24V |
|---|---|
| 0utput | 3 channels |
| Connecting mode | common anode |
| External dimension | L91*W88*H24 mm |
| Output gray | 256 levels (RGB each) |
| Output current | <10A(each channel) |
| Output power | 12V:<360W, 24V:<720W |
| Frequency of RF remote control | 433.9MHz |
There are plenty of options available when it comes to our RGB LED controllers. Specifically designed to run with RGB lighting tape our wireless and wired controller options make it easy to control your LED lights. Easy to install and even easier to use, an RGB LED light controller will complete your LED setup and will affect how you use the lights on a day-to-day basis. Here is our full guide to our LED remotes which features products from our own brand and from the HELMINER LED selection.
RGB Remote Controllers - LED Controllers
- LED CONTROLLERS, SWITCHES & SENSORS
- Update the ambience of your home with the help of an LED controller which can operate your LED lighting. These are designed to control your lights and provide ease of use and control around your home.
