CRI97 36W CCT LED Strip
Specification
Model | HS-C02/CCT |
Voltage / Power | 24V DC | 36W /Meter |
LED Qty | 480 LED ( 2 x 120ww + 2x 120 cw)/pcs |
Color | 2700K - 7000K OEM Yes |
CRI | > 97 |
Dimension | 5000mm * 12mm * 2mm ( L * W * H ) |
Warranty | 3 Years warranty. MOQ 500 Meters |
Price |
US $ *
Promotion
|
Please check the following link to get more informaiton
Facebook : How to use CCT led controller
TECHNICAL INFORMATION
- CCT 36W LED strip is flexible and can be bent and laid up to a bending radius of 2cm
- The CCT LED strip can be dimmed without any loss of efficiency 24V operating voltage (safety extra-low voltage)
36w CCT Tunable White LED Strip Lights

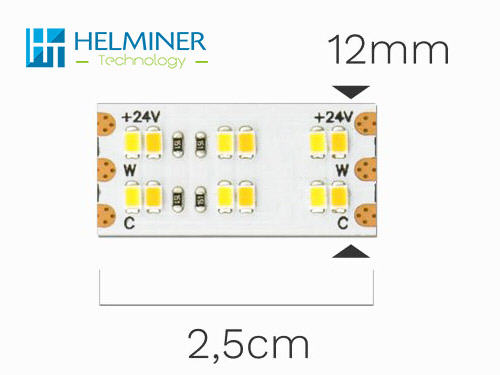

The strip is very densely packed with 480 LEDs per meter (2 rows of 120 groups each consisting of one cold white and one warm white LED),
so that homogeneous illumination can be achieved even at a short distance from the cover or projection surface

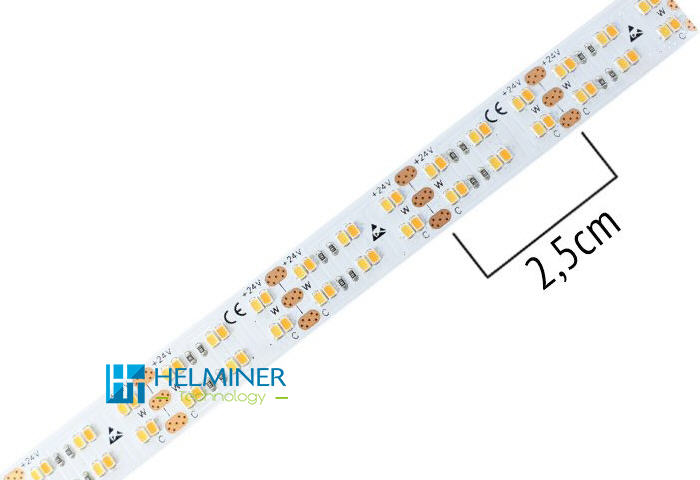

The dual-white CCT LED strip has offset cold and warm white LEDs installed.
The color temperature of the LED strip can be adjusted using a suitable cold white-warm white CCT LED controller.
This is done by regulating the brightness of the cold and warm white LEDs relative to each other
The color temperature of the LED strip can be adjusted between 2700K and 7000K
The LED strip has a very high color rendering (CRI-97) for very color-accurate lighting applications
The adjustability of the color temperature as well as the high color rendering makes this LED strip ideal for presentation lighting.
You can use the effect of color temperatures for your products to put them in the spotlight even better
It can be useful to choose cold white light for more technical products and warm white light for cosmetics and food,
CCT LED für Profile und Spanndecken, LED-Beleuchtung
for example : Due to the high performance of the LED strip, it can only be operated up to a maximum length of 300cm in one go and it is necessary to cool it.We therefore recommend installing this strip in LED aluminum profiles, which absorb and dissipate the heat from the strip
CCT LED Streifen 24V dualweiß 36W/m warmweiß + kaltweiß - Eigenschaften
